GMC Canyon Purge Valve Replacement (Real Job – Nashville, TN)
- Mobile Mechanic Co
- Aug 15, 2025
- 2 min read
Date of Service: August 15, 2025
Location: Nashville, Tennessee

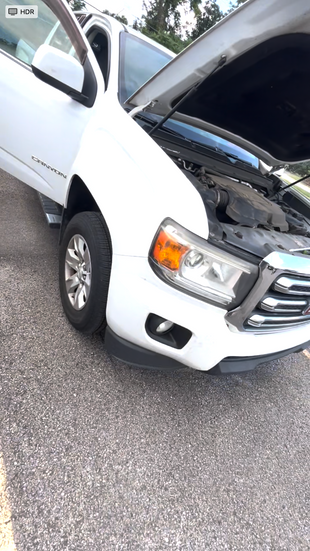

Vehicle: 2015 GMC Canyon SLE 3.6L V6
Service Performed: EVAP Purge Valve Replacement
Business: Mobile Mechanic Co. – 615-795-1347
Customer Complaint
I received a call from a customer in Nashville about their 2015 GMC Canyon having trouble starting after getting gas. They also mentioned the Check Engine Light had been on for a while.
Other symptoms included:
Extended crank time right after refueling
Occasional rough idle
Slight fuel smell at times
Decreased fuel efficiency
This is a pattern I’ve seen many times, especially with EVAP system issues.
Diagnosis Process
When I arrived, I connected my scanner and pulled the following common EVAP-related codes:
P0496 – EVAP System High Purge Flow
On the GMC Canyon, this code is often linked to a faulty purge valve (purge solenoid).
To confirm, I:
Monitored live data from the EVAP system
Checked if the purge valve was stuck open
Inspected vacuum lines for leaks or damage
The purge valve was allowing fuel vapors to pass through when it shouldn’t—especially noticeable right after refueling.
The Repair
The purge valve on this Canyon is relatively accessible, but proper installation and testing are key.
Steps performed:
Located and removed the faulty purge valve
Inspected surrounding hoses and connections
Installed a new purge valve
Cleared diagnostic codes
Tested the system and verified proper operation
Total repair time was about 1 hour on-site.
Result
After the repair:
Vehicle started normally after refueling
Idle smoothed out
Check Engine Light remained off
No more fuel vapor issues
Customer was glad it turned out to be a straightforward fix instead of a more complex fuel system problem.
Why Purge Valves Fail on GMC Canyon
The purge valve is part of the EVAP system, which controls fuel vapors. Over time, it can fail due to:
Internal valve sticking open or closed
Wear from constant heat cycles
Carbon buildup from fuel vapors
When it fails, it can cause starting issues—especially after filling up the gas tank.
Other Common GMC Canyon Repairs I See
If you own a GMC Canyon, these are some common services I frequently perform:
1. EVAP System Repairs
Including purge valves, vent valves, and leak detection issues.
2. Thermostat Replacement
Causes overheating or fluctuating temperature readings.
3. Ignition Coil & Spark Plug Replacement
Misfires, rough idle, and poor acceleration.
4. Brake Pads and Rotors
Routine maintenance for daily driving.
5. Battery & Charging System Issues
Dead battery or alternator-related problems.
Why Customers Choose Mobile Mechanic Co.
We come directly to your location in Nashville and surrounding areas
Honest diagnostics with no unnecessary repairs
Experience with GMC, Chevrolet, and other domestic vehicles
Convenient, time-saving service
📞 Call or Text: 615-795-1347📱 Facebook: @MobileMechanicCo
Need EVAP System Repair in Nashville?
If your vehicle is hard to start after getting gas or has a Check Engine Light on, it may be related to the EVAP system.
Mobile Mechanic Co. provides on-site diagnostics and repairs to get your vehicle running properly again.
